OpenWRT on a FortiGate 50E

A few months ago, I brought home a used FortiGate 50E firewall from work that I had replaced with a Unifi firewall. At my house, I had previously been using Google’s Mesh WiFi system, and had wanted to replace it for quite some time. I had some experience with Fortinet’s user interface, but was curious about what other open source options existed out there.

I looked at several options, and finally decided on OpenWRT, a simple, open source firewall firmware. It has support for my firewall, and was said to be easier than other firmware to load and configure.

Following the installation instructions for my model, I set up a TFTP server on my laptop, powered on the firewall, interrupted the boot process, and forced it to pull the OpenWRT files from my laptop. It booted successfully, and I got to work figuring out how to use it!

I followed a few other tutorials to figure out some of the more complicated setup procedures, and soon had it working perfectly! I also replaced my Google Mesh system with a few Unifi APs I had also gotten used from work (finally a network I can take control of!).

One of my next challenges was to implement some kind of downtime for specific devices. I needed the TVs and computer to be blocked from accessing the internet after 9:00 PM each school night. This was a pretty simple set up with Google’s mesh system, but took more time to get working properly with OpenWRT.

I created a time based traffic rule that rejects traffic coming from the MAC addresses of each device I wanted to block, then set it to block from 9:00 PM until 5:00 AM the next morning. This worked for a while, until I realized this setup would only block new connections. Existing connections, for example, if someone started playing on an online Minecraft server before 9:00 PM, would not be severed at 9:00.

I discovered that severing these connections required running a Conntrack command to drop all existing connections to the IP addresses in question. I statically assigned the devices, installed Conntrack, and created a Cron task:

# Drop all connections on specified devices at 9:00 PM Monday through Thursday.
1 21 * * 1,2,3,4 conntrack -D -s 10.40.0.20 && conntrack -D -s 10.40.0.21 && conntrack -D -s 10.40.0.22

Now everything was working how I wanted it to!

But, as always, I wanted to make some improvements. It all worked great, but occasionally I would want to disable it to keep the interne on longer. Logging into the router to disable the rule was clunky, so I decided to create a Shortcut with Apple’s Shortcuts app to make the job easier.

I installed an awesome little package called luci-app-commands. This package allows you to create scripts, then run them by opening a URL on a locally connected device.

I created a few different scripts, and created a Shortcut that allows me to disable or re-enable a traffic rule for the day.

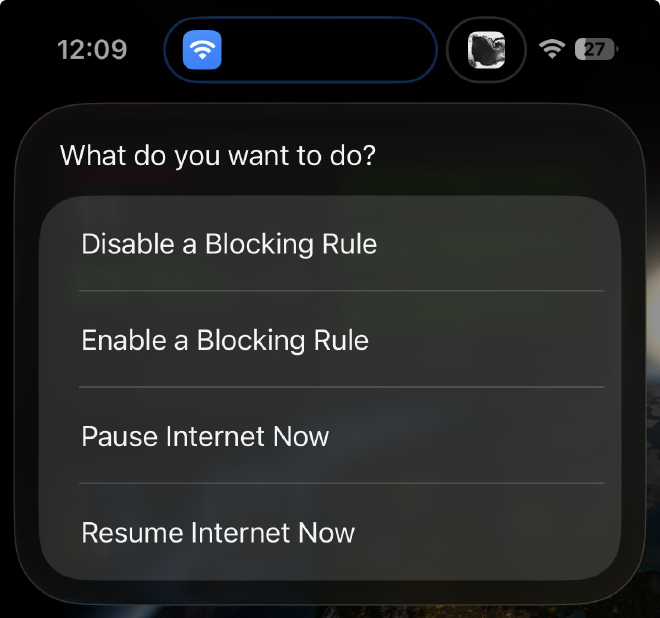

Screenshot of the shortcut in action, displaying several options — I added a few other functions I could control with just a few taps!

I’ve since added the ability to pause the internet to those few devices at any time with just a single button press, and added a second traffic rule that starts blocking at 11:00 PM every night.

Of course, to make sure everything is reset for the next day, a simple cron task runs each morning:

# Enable/disable custom rules that may have been disabled/enabled previously. Every morning at 6:00.
0 6 * * * uci set firewall.@rule[0].enabled=0 && uci set firewall.@rule[1].enabled=1 &&  uci set firewall.@rule[2].enabled=1 && uci commit firewall && service firewall reload

While the setup process is more extensive than I would have liked, I’ve been quite happy with the OpenWRT! Being able to control the internet connection to specific devices faster and easier than even Google’s Mesh WiFi system has been very handy!
